Accurately measuring the dimensions of an aluminum square tube is crucial, especially when you're in the industry like me as an aluminum square tube supplier. Precise measurements ensure that the product meets the specific requirements of our customers, whether they're for construction, manufacturing, or other applications. In this blog, I'll share some effective methods and considerations for accurate dimension measurement.
Understanding the Key Dimensions
Before we dive into the measurement methods, it's important to understand the key dimensions of an aluminum square tube. These typically include the outer side length, wall thickness, and length of the tube. The outer side length determines the overall size of the square cross - section, while the wall thickness affects the tube's strength and weight. The length of the tube is, of course, essential for applications where specific lengths are needed.
Tools for Measurement
- Vernier Caliper A vernier caliper is a versatile and widely used tool for measuring the outer and inner dimensions of an aluminum square tube. It can provide measurements with high precision, usually up to 0.02 mm or 0.001 inches. To measure the outer side length, simply open the jaws of the caliper and place them on the opposite sides of the tube's outer surface. Make sure the caliper is perpendicular to the tube's axis for an accurate reading. For measuring the wall thickness, use the smaller jaws of the caliper to measure the distance between the inner and outer surfaces.
- Micrometer A micrometer offers even higher precision than a vernier caliper, typically up to 0.001 mm or 0.0001 inches. It is especially useful when extremely accurate measurements of the wall thickness are required. To use a micrometer, place the tube between the anvil and the spindle, and then turn the thimble until it gently touches the tube. Read the measurement on the sleeve and thimble scale.
- Steel Tape Measure For measuring the length of the aluminum square tube, a steel tape measure is a practical and reliable tool. Make sure the tape measure is straight and aligned with the tube's axis. For longer tubes, it may be necessary to use a helper to ensure the tape measure remains straight throughout the measurement.
Measuring the Outer Side Length
To measure the outer side length of the aluminum square tube, start by selecting a suitable measuring tool. If the required precision is not extremely high, a vernier caliper can be a good choice. Place the caliper jaws on the opposite outer sides of the tube at a right - angle to the tube's axis. Take multiple measurements at different positions along the tube's length, as there may be slight variations in the dimensions due to manufacturing processes. Record the average of these measurements as the outer side length.
For applications that demand very high precision, a micrometer can be used. However, since a micrometer has a relatively small measuring range, it may need to be used in combination with other methods for larger - sized tubes.
Measuring the Wall Thickness
Measuring the wall thickness accurately is essential, as it affects the tube's mechanical properties. Use the inner jaws of a vernier caliper to measure the inner dimension of the square tube. Then, measure the outer side length as described above. The difference between half of the outer side length and half of the inner side length gives the wall thickness.
If a more precise measurement is needed, a micrometer can be used. Carefully place the micrometer on the tube wall, making sure it is perpendicular to the wall surface. Take multiple measurements at different locations around the tube's cross - section, as the wall thickness may vary slightly. Calculate the average of these measurements for a more accurate result.
Measuring the Length
When measuring the length of the aluminum square tube, ensure that the tube is placed on a flat and level surface. Use a steel tape measure and start the measurement from one end of the tube. Make sure the tape measure is straight and follows the tube's axis. If the tube is long, mark the starting and ending points clearly to avoid errors. Take multiple measurements and calculate the average to account for any minor discrepancies.
Considerations for Accurate Measurement
- Surface Condition The surface condition of the aluminum square tube can affect the measurement accuracy. If the surface is rough or has burrs, it may cause the measuring tool to not make proper contact, resulting in inaccurate readings. Before measuring, it's advisable to clean the surface of the tube and remove any burrs or debris.
- Temperature Temperature can cause the aluminum tube to expand or contract. Aluminum has a relatively high coefficient of thermal expansion. Therefore, it's important to measure the tube at a stable temperature or correct the measurements based on the temperature difference from the standard measurement temperature (usually 20°C or 68°F).
- Measurement Environment The measurement environment should be free from vibrations and excessive air movement, which can also affect the accuracy of the measurements. Use a stable workbench or measuring stand to ensure the tube and the measuring tool are in a stable position.
Different Types of Aluminum Square Tubes

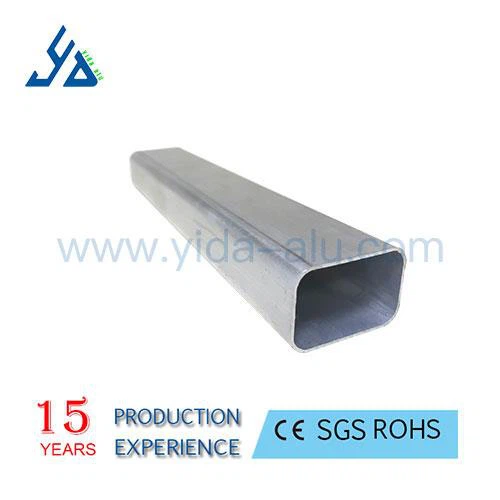

As an aluminum square tube supplier, we offer a variety of products, such as 6063 Aluminum Square Tube. The 6063 alloy is known for its excellent corrosion resistance and good formability, making it suitable for a wide range of applications.
We also have Thin Wall Aluminum Extrusion. Measuring the dimensions of thin - walled tubes requires extra care, as the thin walls are more prone to deformation during measurement. Specialized measuring techniques and tools may be needed to ensure accurate results.
Another type is the Triangular Extruded Aluminum Tube. Although it's not a square tube, the basic principles of dimension measurement are similar. However, the unique triangular shape requires some adjustments in the measurement process, such as measuring the side lengths and angles accurately.
Conclusion
Accurately measuring the dimensions of an aluminum square tube is a multi - step process that requires the right tools, proper techniques, and careful consideration of various factors. As a supplier, we understand the importance of providing products with precise dimensions to meet our customers' needs. Whether you're a construction company, a manufacturer, or an individual in need of aluminum square tubes, we can offer high - quality products with accurate dimensions.
If you're interested in our aluminum square tubes or have any questions about dimension measurement or product specifications, please feel free to contact us for a procurement discussion. We're committed to providing you with the best products and services.
