Aluminium Expansion Joint Cover Strips
Aluminium Expansion Joint Cover Strips
Aluminium Expansion Joint Cover Strips refer to a structural joint set vertically along the appropriate part of the length of the building to prevent building components from causing cracks or damage due to climate temperature change (hot and cold shrinkage).Expansion joints divide the building components above the foundation, such as wall, floor, roof (except the wooden roof) into two parts, so that the building can be horizontal expansion along the long direction.The width of the seam is generally 200-400mm.
Product Introduction
|
PRODUCT NAME |
Aluminium expansion joint cover strips |
|
MATERIAL |
Aluminium 6063-T5, EPDM or Thermoplastic PVC |
|
COLOUR |
Aluminium: Mill finish, Anodized Silver PVC: Grey, Black |
|
THICKNESS |
1MM or as customer's requirements |
|
HEIGHT |
8MM, 10MM, 12MM or as customer's requirements |
|
LENGTH |
250MM, 300MM or as customer's needed |
|
PACKAGE |
PE Protective film for each pc; PE shrink film for each bundle; standard carton packing; pallet packing; Customized Packaging requirement |
1) The distance between expansion joints of the frame-shear wall structure can be calculated according to the specific arrangement of the structure.
2) When there is no heat preservation or heat insulation measures on the roof, the shrinkage of concrete is large or the indoor structure is exposed for a long time due to construction, the spacing of expansion joints should be reduced appropriately.
3) The structure is located in the region with dry climate, hot summer and frequent rain. The spacing of expansion joints is appropriately reduced.
Product Display
Height: 8 mm |
Height: 10 mm |
Height: 12.5 mm |
Stability and durability
The aluminum expansion joint cover slats can effectively resist the corrosion of environmental factors such as air and water. It is usually designed as a hermetically sealed or semi-hermetic structure to prevent moisture from penetrating into the expansion joint, thus acting as a moisture barrier.
01
Dimensions & Specifications
Length selection is usually determined based on the actual length of the expansion joint as well as the construction needs. The cover slats can be cut to a suitable length according to the total length of the expansion joint, or standard length cover slats can be selected for splicing. Aluminum expansion joint cover slats suppliers may supply aluminum expansion joint cover slats in standard lengths, such as 1 meter, 2 meters, etc.
02
Surface treatment process
The anodized layer on the surface of Aluminium Expansion Joint Cover Strips has corrosion resistance, the process color effect, a variety of color options can be obtained through dyeing treatment, the oxide layer as a protective film, can effectively isolate the air from contact with the aluminum substrate, the oxide film structure formed by the process is stable, and the protective effect can be maintained for a long time in the conventional environment, prolonging the service life of the product.
03
Ease of installation
Cover slats are usually equipped with special fixings or connectors, such as screws, rivets or snaps, which allow the cover slats to be securely mounted on expansion joints. Some cover slats are also designed with slide rails or slot structures, which are convenient for quick connection with the base or other components, and the construction personnel can easily move and position the cover slats, reducing labor intensity.
04
Inventory & Delivery
Yida suppliers also provide customized services to produce aluminum expansion joint cover slats of specific specifications and sizes according to the specific needs of customers. Lead time depends on several factors, including order quantity, production cycle, shipping time, etc. For small batch orders, the supplier may be able to complete production and shipment in a shorter period of time. For high-volume orders, lead times may be relatively long as more production time and scheduling are required.
05
Have you ever seen any of the following?
Cracks in the walls The wall is deformed Houses collapsed
What is a deformation seam?
Deformation joints are a general term for expansion joints, settlement joints, and shockproof joints. Buildings tend to deform under the action of external factors, leading to cracking and even destruction. A deformed seam is a construction seam that is reserved for this situation.
Expansion joints: Building components expand and contract due to changes in temperature and humidity, among other factors.
Seismic joints: The joints are set to make the building more regular and conducive to the seismic resistance of the structure, and the foundation can be opened continuously.
Settlement joint: refers to the building structure joint set up to avoid cracking of the wall or other structural parts caused by uneven settlement when the height of the same building is very different, the upper load is unevenly distributed, or it is built on different foundation soils.
Application examples
Architectural field:Aluminum expansion joint cover slats are used to cover the roof expansion joints and prevent rainwater from seeping into the building.
Industrial field: In the ground laying of factories, warehouses and other industrial sites, aluminum expansion joint cover slats are used to cover the ground expansion joints and protect the ground system from damage caused by heavy-duty vehicles, machinery and equipment.
Traffic facilities: In tunnel engineering, aluminum expansion joint cover slats are used to cover the expansion joints of the tunnel wall or pavement to prevent groundwater from seeping into the tunnel, and at the same time adapt to the expansion and deformation of the tunnel to ensure the stability and safety of the tunnel structure.
Special environment applications: Aluminum expansion joint cover slats are widely used because of their easy cleaning and corrosion resistance. They prevent contaminants such as dust and bacteria from entering the expansion joints and maintain the cleanliness of the environment.
Factory View

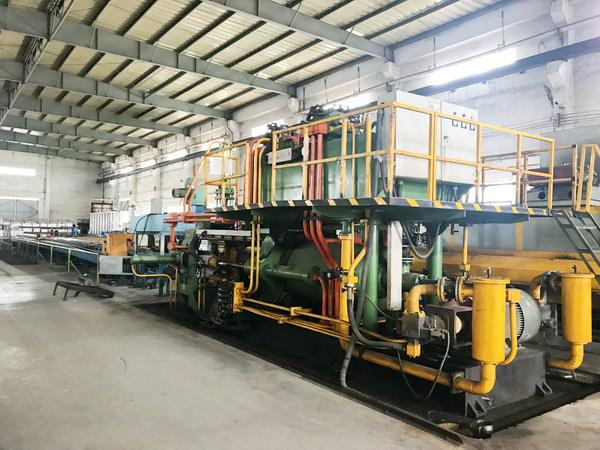

Extruder1 |
Extruder2 |
Extruder3 |
Anodizing |
CNC |
Molds |
Marketing
Years of production experience and technological innovation, excellent marketing team, strict quality control and perfect after-sales service system in the aluminium extrusion field. Through unremitting efforts, the company has a marketing network all over the country and cooperates with partners to develop the market. At the same time, the company has set up a marketing branch in HongKong, and established sales networks in Germany, Spain, Russia and other countries and regions, and its export volume ranks among the top among many aluminum manufacturing companies.
We are aimingatproviding premium quality, competitive price aluminium profiles and offering a complete specialist solution to every one of our customers all over the world.
