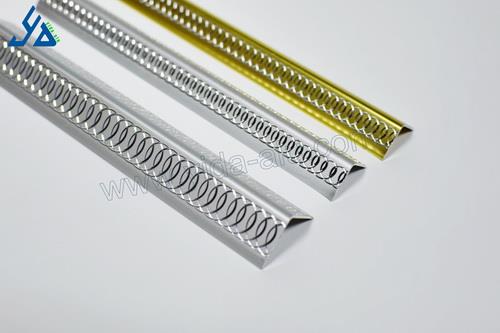

Cnc Router Aluminium Profile
CNC engraving machine aluminum profile refers to the process of precision machining of aluminum profiles using an engraving machine or milling machine controlled by computer numerical control (CNC) technology.
|
Technical Data of Aluminum Extrusion Profiles |
||||||
|
Alloy |
Temper |
Thickness |
Tensile |
Yield |
Vickers |
Webster |
|
Strength |
Strength |
Hardness |
Hardness |
|||
|
6005 |
T6 |
≤5 |
≥270MP |
≥225MP |
|
|
|
T6 |
5＜e≤10 |
≥260MP |
≥215MP |
|
|
|
|
T6 |
10＜e≤25 |
≥250MP |
≥200MP |
|
|
|
|
6060 |
T6 |
≤3 |
≥190MP |
≥150MP |
|
|
|
T6 |
3＜e≤25 |
≥170MP |
≥140MP |
|
|
|
|
6061 |
T6 |
|
≥265MP |
≥245MP |
HV≥58 |
HW≥8 |
|
6063 |
T5 |
|
≥160MP |
≥110MP |
HV≥58 |
HW≥8 |
|
T6 |
|
≥205MP |
≥180MP |
HV≥58 |
HW≥8 |
|
- Processing technology: milling, drilling, tapping, cutting, bending, grooving, countersinking, chamfering, etc.
- Processing accuracy: ±0.02mm (positioning accuracy), ±0.01mm (repeat positioning accuracy)
- Profile width: The conventional width of the support surface is 20~300mm, wide sections can be customized
- Standard length: 6 meters / piece, can be cut to length according to project requirements
- Customization support: Special-shaped cross-sections, special wall thicknesses, and non-standard sizes can all be customized by mold opening
Aluminum properties
It is made of high-quality aluminum alloy base material, with a dense and sealed surface, resistant to atmospheric corrosion, and easy to undergo various surface treatments. Extrusion molding can achieve complex cross-section designs, while being lightweight and structurally rigid, and is widely adaptable to various industrial structural scenarios.
01
Processing accuracy
Using high-precision multi-axis CNC equipment, the positioning accuracy can reach ±0.02mm, and the repeated positioning accuracy is ±0.01mm. It can stably complete the processing of complex cavities, multi-hole positions, and high-precision assembly surfaces, fully meeting the assembly interchange requirements of precision equipment.
02
integrated processing
Supporting multi-axis linkage processing, multiple processes such as milling, drilling, cutting, and tapping can be completed with one clamping, reducing manual tool changing and clamping time, greatly improving production efficiency, shortening project delivery cycle, and adapting to customization and mass production.
03
Flexible design
Cnc Router Aluminium Profile Fully supports CAD/CAM software programming, which can quickly switch between different product design solutions to meet customers' new product development and rapid iteration needs; structural adjustments can be completed without additional mold opening, effectively reducing R&D trial and error costs.
04
OEM process
One-stop for all processes: covering the entire process of mold customization, aluminum profile extrusion, surface treatment, and CNC precision machining, without the need for multiple suppliers.
Flexible customization mode: Support OEM/ODM production, and can conduct customized production according to customer drawings and samples
Pre-assembly processing service: Provide pre-processing such as cutting, tapping, grooving, etc. The product can be assembled through aluminum groove bolts and nuts, no welding required, the surface is flat, and on-site assembly is quick
Delivery and Inventory: Conventional profiles are in stock, customized profiles are produced on demand, the delivery cycle is stable, and large-volume long-term supply is supported
Application scenarios
Building Decoration Project: Bridge aluminum door and window profiles, curtain wall keels, sunroom frames, aluminum screens, customized cabinet frames, decorative lines, etc., are precisely processed to ensure uniform splicing gaps and beautiful installation effects.
Industrial equipment and machinery manufacturing: motor casings, gearbox casings, pneumatic component bases, production line racks, robot guide rails, testing equipment brackets, etc. High strength and high precision ensure long-term stable operation of the equipment.
Electronic and communication equipment: router shells, antenna brackets, server chassis frames; precision processing of threaded holes, snap grooves, and cooling hole arrays to ensure component sealing and electromagnetic shielding performance.
Automobile and new energy industry: battery pack casing, lightweight body frame, motor end cover; modified luggage rack, lightweight chassis parts, interior aluminum trim; support small batch rapid customized production.
Aviation and rail transit: aircraft seat frames, cabin partitions, ventilation system aluminum profiles; carriage seat frames, cable trays, air conditioning system heat dissipation profiles; large quantities of standardized milling slots and interfaces to ensure interchangeability and rapid installation of parts.
Our factory
Various CNC Machining Technology
We have the ability to design and produce aluminum alloy products in various processes according to the requirements of each project.
Advanced Equipment
-3 extrusion lines range from 600 to 4000 tons.
-10+ high precision CNC machines.
One-stop Solution
- Mold Customization
- Aluminum Extrusion
- Surface Treatment
- CNC Machining
custom service
- OEM & ODM service is available.
- Design &customization according to customers' requirements.
Q&A
Q:Are you able to machine existing profiles that we have not purchased directly from you?
A:Our fabrication facility can handle free-issue profiles as well as profiles.All we need to get started are your fabrication drawings
Q:How do you correct aluminium surface defects?
A:There are various types of potential aluminum surface defects, such as die lines, notches, pickup, tearing and welding defects. Some of these defects do not adversely affect the usability of extruded aluminium However, for visible applications, we can correct aluminum surface defects through a series of processing and vibration finishing services.
