CNC-Milled Aluminium Mounting Base

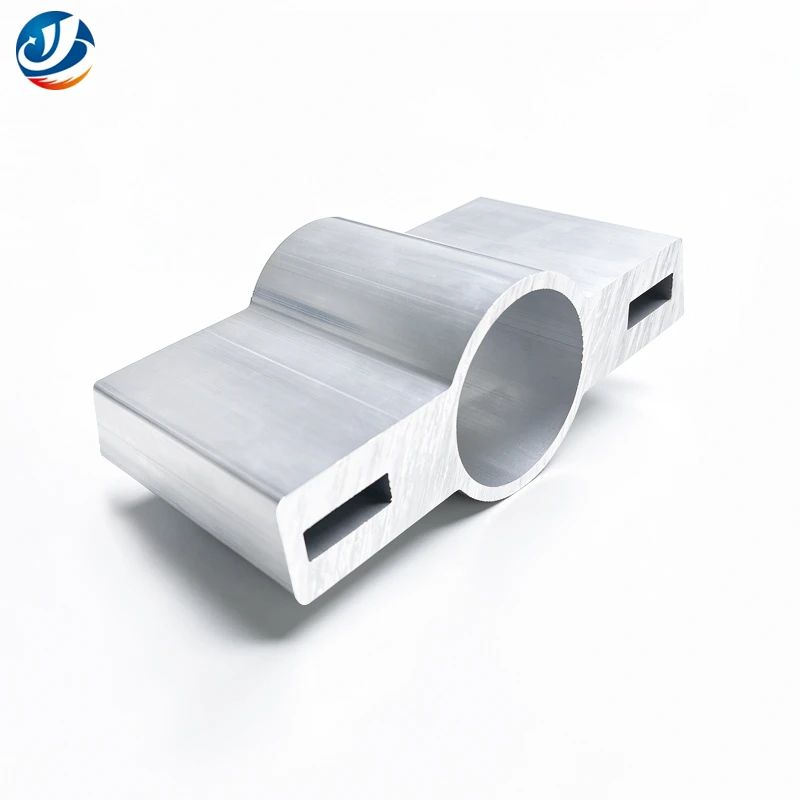

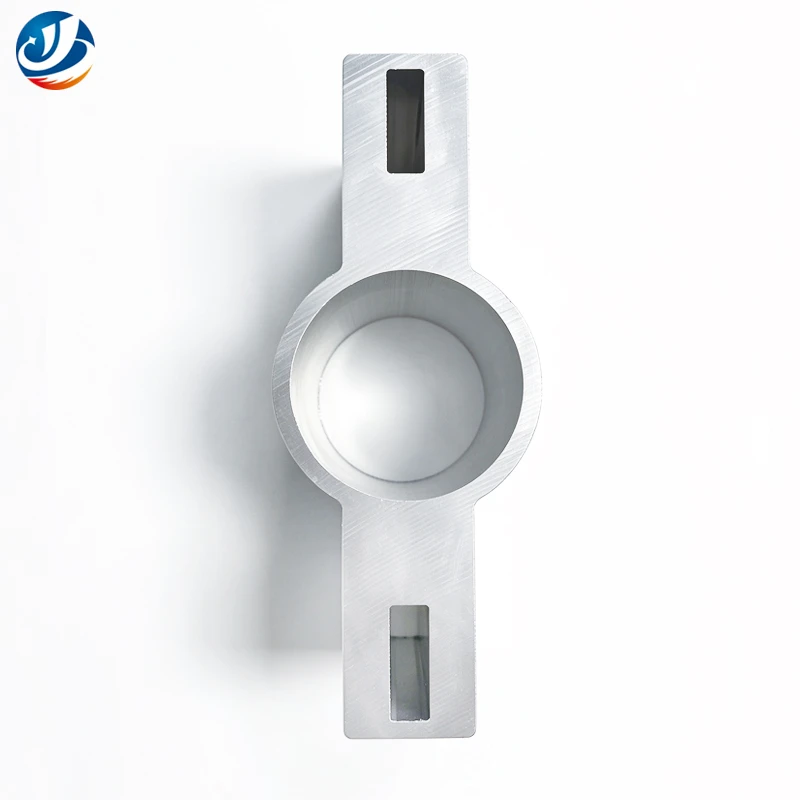

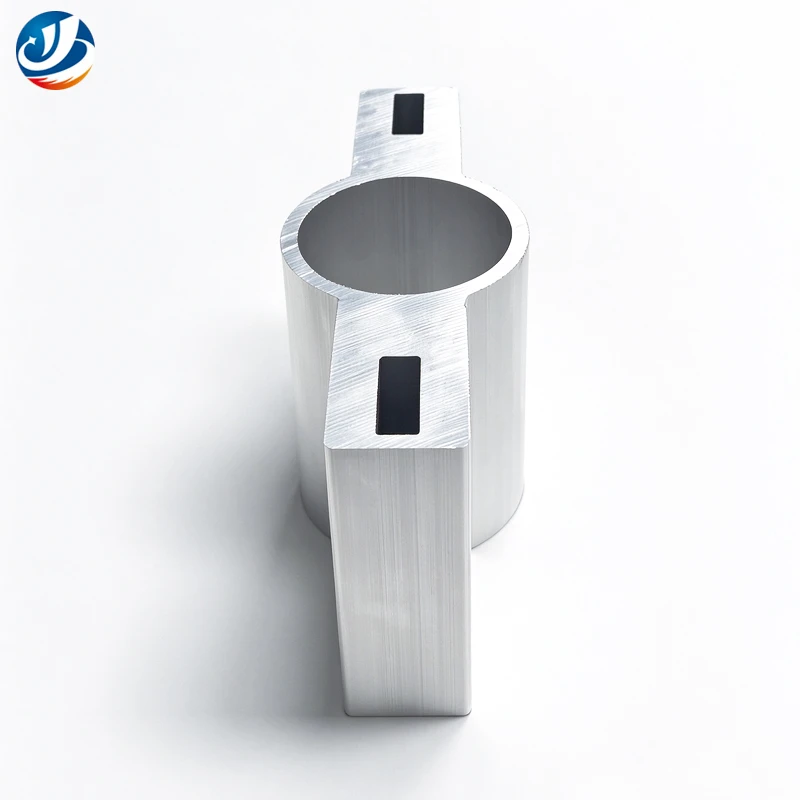

CNC-milled aluminum mounting base is precision-machined from an extruded aluminum alloy blank. It features a large central through-hole, with elongated adjustment slots provided in the upper and lower mounting lugs.
Product parameters
| Name | CNC-Milled Aluminium Mounting Base |
| Material | 6063-T5,6061-T6 Aluminium, etc. |
| Size | OEM |
| Color | Silver, black, white, etc. |
| Surface treatment | Grinding, anodizing, wood grain finish, powder coating, sandblasting, electrophoretic coating, wire drawing, polishing, etc. |
| Process | Cutting, drilling, machining, punching, bending, tapping, etc. |
| Structural features | A central through-hole + symmetrical elongated slots on the top and bottom. |
| Customizable features | Inner bore diameter, slot length and width, outer profile, thickness, chamfering, tapping, and surface treatment. |
| Lead Time | 7-15 days (standard); 20-30 days (custom). |
| MOQ | 100 PCS |
Good materials
Constructed from 6061 aluminum, it offers reliable mechanical strength while remaining lightweight, ensuring no additional load is placed on the equipment frame.
01
Corrosion resistance
Aluminum is inherently rust-resistant; it can also undergo processes such as anodizing or sandblasting to further enhance its wear and corrosion resistance.
02
Thermal conductivity
Helps dissipate heat generated by the spindle and motion axes, thereby extending the service life of moving components.
03
Machining Precision
CNC milling ensures strict tolerance control, resulting in a smooth internal bore and excellent coaxiality; this guarantees a stable fit with mating shafts and simplifies large-scale assembly.
04
Flexible Customization
We can adjust the inner bore diameter, slot specifications, overall shape, and thickness according to your technical drawings, while ensuring a high degree of dimensional consistency across all products.
05
Application Fields
Linear Motion Automation Systems：Used as shaft fixing support for linear modules, linear slides, ball screw assemblies. The slotted holes allow fine alignment of optical axes and guide shafts to ensure smooth linear movement and reduce jitter.
Inspection & Testing Jigs：Adopted in visual inspection stations, dimensional checking fixtures and performance test benches. The adjustable design facilitates calibration and position adjustment of cameras, laser sensors and probes.
Robotic & Motion Platform Mechanisms：Used for robotic auxiliary brackets, multi-axis motion platforms, gantry systems. Lightweight and high rigidity reduce the load of moving axes while maintaining positioning repeatability.
Packaging & Conveying Machinery：Mounting support for guide shafts and positioning components in labeling machines, filling machines and conveyor lines. It adapts to frequent on-site adjustment during product changeover.
Specialized Automated Medical Equipment：For low-load precision medical automation platforms, diagnostic testing instruments, meeting clean and low-corrosion requirements of medical equipment.
Factory Strength

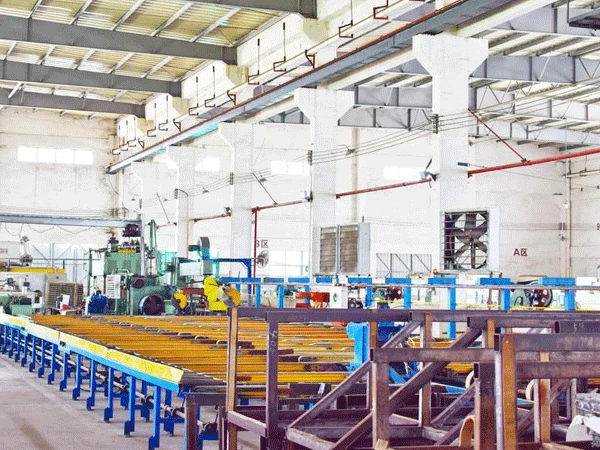

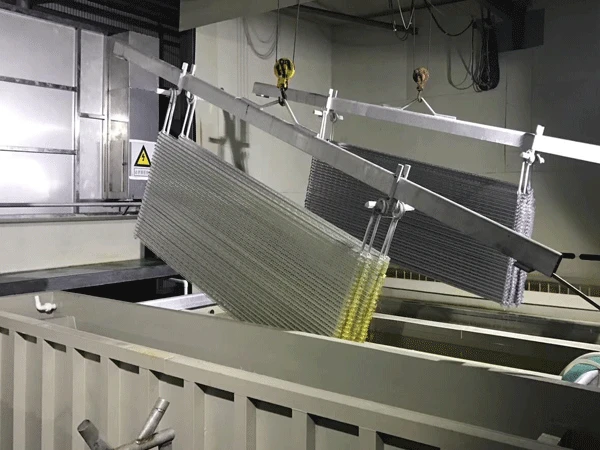

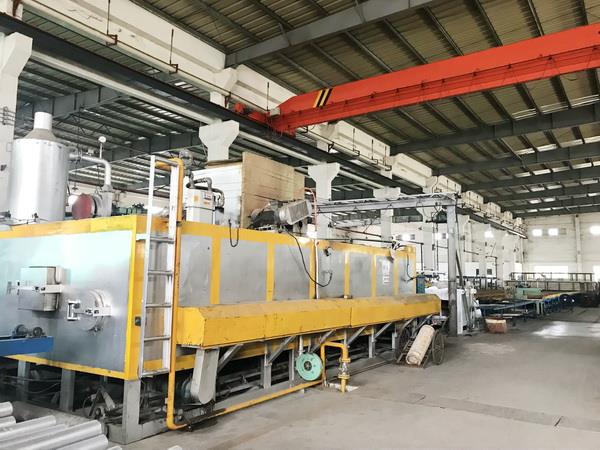

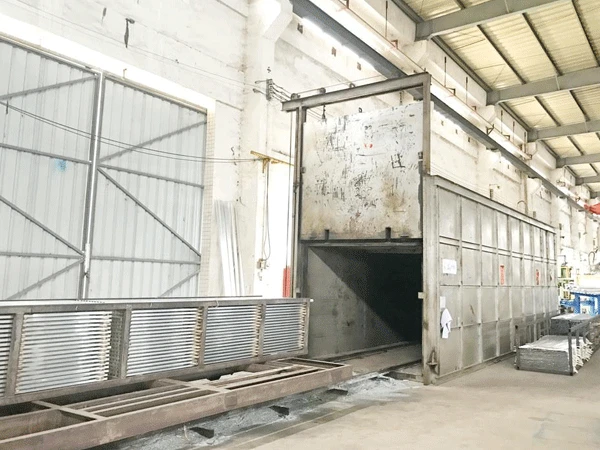

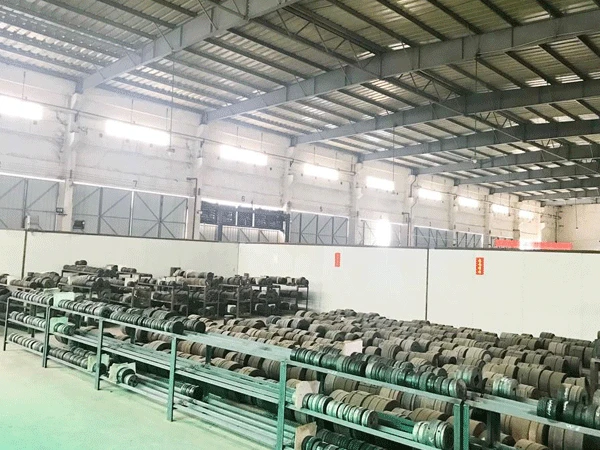

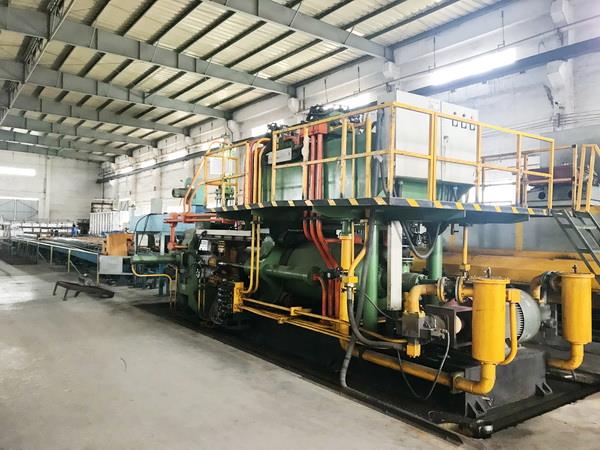

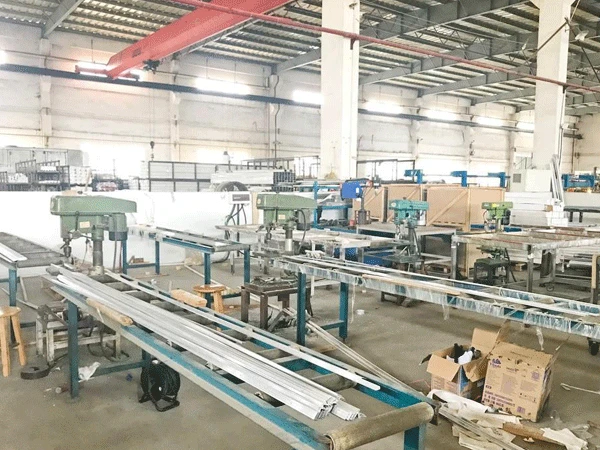

We are an integrated manufacturer with in-house aluminum extrusion workshop and CNC precision machining workshop. The whole production chain, including aluminum billet extrusion, die opening, CNC milling, surface treatment and final inspection, is completed inside our factory.

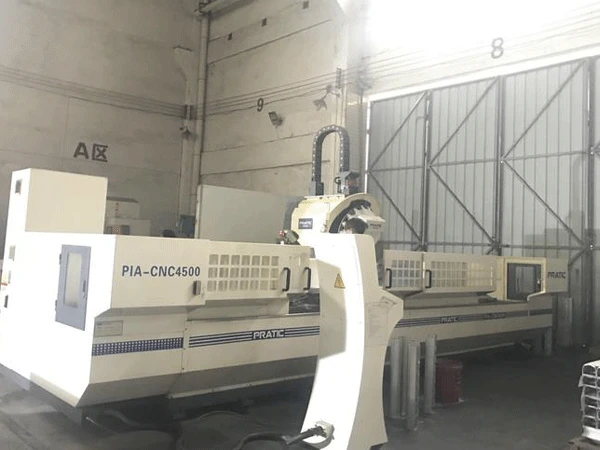

Equipped with multiple CNC machining centers, CMM coordinate measuring machine, roughness tester and optical emission spectrometer. We own 20 years of experience in aluminum extrusion and foreign trade supporting, familiar with European and American industrial standards. Stable supply capacity can support long-term large-volume orders.
Customization Service & Requirements
We offer full OEM & ODM customization service for CNC-Milled Aluminium Mounting Base. We can develop products according to your drawings, samples or technical specifications, covering prototype, small-batch trial and mass production. Adjustable items include alloy grade, central bore diameter, slotted hole size, outline dimension, thickness, chamfer, tapping and surface finish. We also provide structural optimization suggestions to match your special working conditions for automation and testing equipment.
Quotation Requirements:
Supported drawing formats: STEP, IGS, SolidWorks, UG, CAD, PDF
Information to supply: tolerance, surface roughness, alloy grade, surface treatment, quantity, working condition and special inspection requirements
Standard process: Drawing evaluation → Quotation → Sample fabrication → Sample confirmation → Mass production
Flexible MOQ: Sample order acceptable, starting from 1 piece
echnical Support
Professional engineering team provides free DFM review before quotation. We help you optimize drawing design, improve structure and select suitable tolerance schemes. Inspection reports are provided together with samples to avoid assembly risks in advance.
After-sales Guarantee
100% dimensional inspection before shipment; CMM sampling inspection for high-precision batches.
For production-caused non-human quality defects, we support rework, reshipment or negotiated compensation.
Dedicated foreign trade sales coordinator, 7/24 technical consultation support.
Custom quality standards can be established for long-term cooperative orders to guarantee consistent batch quality.
