Extruded Aluminium Electronic Instrument Enclosures

Extruded Aluminum Electronic Instrument Enclosures take into account lightweight, structural strength and excellent thermal conductivity and heat dissipation capabilities, and can complete one-stop production from profile extrusion, CNC machining to surface treatment according to customer drawings or project requirements.
Send Inquiry
Product Introduction
Extruded Aluminium Electronic Instrument Enclosures

Extruded Aluminum Electronic Instrument Enclosures are made of 6063-T5 aluminum, which has excellent heat dissipation and corrosion resistance. It supports full customization of drilling, tapping, size, and surface technology, and serves manufacturers of communication, medical, and automated industrial control equipment.

Material Introduction



Products name Extruded Aluminium Electronic Instrument Enclosures
Material Aluminium 6063-T5,6061‑T6 etc.
Size OEM
Color Silver, black, gold, rose gold, etc.
Surface treatment Polishing, sandblasting, brushing, epoxy coating, powder coating, PVDF coating, anodizing, etc.
Secondary processing Cutting, CNC drilling, hole making, tapping, slot milling, reserving spaces for various interface connectors
Operating temperature range Uncoated: -40℃ ~ 120℃; After fluorocarbon coating: -50℃ ~ 150℃
Structural features Extruded in one piece, compact structure and lightweight; standard slots reserved on the sides of the profile, bolts and sliders can be directly assembled, reducing additional drilling steps.
Protection When combined with a sealed structure, it provides excellent dust and moisture resistance, meeting the design requirements for the corresponding IP protection rating.
Lead Time 7-15 days (standard); 20-30 days (custom).
MOQ 100 PCS

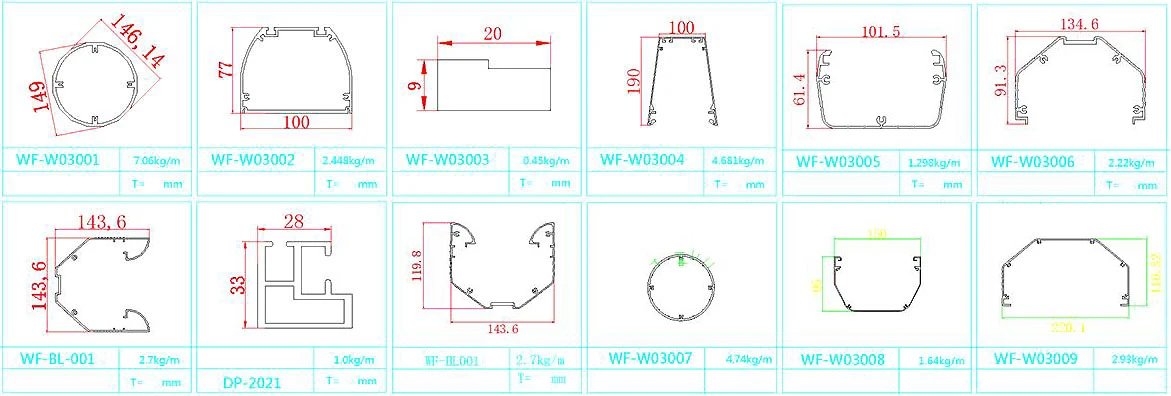

Sectional Drawing



	 Extruded Aluminium Electronic Instrument Enclosures

Extruded Aluminium Electronic Instrument Enclosures
Extruded Aluminium Electronic Instrument Enclosures
Extruded Aluminium Electronic Instrument Enclosures
Extruded Aluminium Electronic Instrument Enclosures

Reliable structure

Aluminum billet is extruded by a die, the profile section is continuous and uniform, the internal structure is dense, and there are no pores, shrinkage holes, etc.; the sealing design is adopted to effectively prevent water vapor, rain, and dust from intruding into the interior of the equipment, and is suitable for outdoor and complex working conditions.

01

Heat dissipation performance

It can quickly dissipate the heat generated by the circuit board and power module during operation, allowing the internal electronic components to maintain a reasonable operating temperature for a long time. It is very suitable for inverters, industrial control modules, and other equipment with high heat dissipation requirements.

02

Structural strength

Extruded Aluminum Electronic Instrument Enclosures have lower weight, reducing the weight of the entire machine, making it easier to install and transport the equipment, while retaining sufficient structural rigidity to protect the internal precision electronic components from damage by external forces.

03

Easy to install

It adopts the standardized design of industrial aluminum profiles. The side walls of the profile are equipped with longitudinal slots. Bolts, nuts, and sliders can be directly inserted into the slots for assembly without the need for a large amount of additional drilling. The modular structure can flexibly adapt to different machine assembly needs.

04

Customization capabilities

From shell cross-section molding, external dimensions, hole tapping, to anodizing and spraying colors, customized production can be achieved according to customer needs, quickly matching the functional requirements of different equipment such as communications, medical, and automation.

05

Packing And Shipping

Extruded Aluminium Electronic Instrument Enclosures
Extruded Aluminium Electronic Instrument Enclosures
Extruded Aluminium Electronic Instrument Enclosures

Professional R&D team: With a professional R&D team, we are committed to the design, R&D and innovation of ground deformation joint covers.



Leading technology: The use of advanced technology and equipment for production to ensure that the quality and performance of the ground deformation joint cover plate reach the industry-leading level.



Quality Control: Implement strict quality control measures in the production process, including raw material inspection, production process monitoring, finished product testing and other links. Ensure that the quality and performance of each batch of products meet customer requirements.



Diversified product options: Provide a variety of specifications and models of floor deformation joint cover plates to meet the needs of different customers. At the same time, it can also be produced according to the customized needs of customers.



Production line: There is an efficient production line, which can achieve large-scale and high-efficiency production.



Perfect service: Focus on customer service and establish a perfect service system. From pre-sales consultation, product selection, to after-sales service, etc., we provide customers with all-round and intimate services.,



Customized services: Customized services can be provided according to the specific needs of customers, including customized services in product design, production, installation and other links.







FAQ



Q1: Can extruded aluminum electronic enclosures be drilled or tapped?
A: Yes, we can perform secondary processing like CNC drilling, opening, tapping, and milling according to the customer's drawings, leaving positions for various interfaces and connectors. Once customers receive the enclosure, they can directly assemble the components.



Q2: For non-standard custom enclosures, can you provide a sample first for confirmation?
A: Yes, non-standard projects support pre-production sample confirmation. Once the sample is approved, we start mass production to avoid deviations. The sample cycle is 7–15 days, depending on the complexity of the cross-section.



Q3: What advantages do you have compared to other suppliers?
A: We have over 15 years of complete aluminum profile production experience. Extrusion, machining, and surface treatment are all done in-house, cutting out the middleman. We can also offer early structural optimization suggestions considering both product performance and cost, providing long-term stable supply support.



Q4: Can the enclosure meet IP protection requirements?
A: Aluminum enclosures can have a low-gap structure, but IP protection depends on the supporting sealing components. We can offer enclosure structure suggestions and assist with sealing design to achieve the target IP protection level.
