Aluminium Extruded Heat Sink
High-magnification design, effective heat dissipation area, fast heat dissipation and easy assembly.Aluminum is one of the most ductile metal, providing a high level of design freedom, making processing relatively easy and inexpensive.
We can extrude aluminium into various customized shapes, including complex cross sections, and can process aluminium in a variety of ways, including precision and precision tolerance processing and near net shape production.
Technical Parameter
Material | 6000 series Aluminium Alloy |
Temper | T5, T6 |
Size / Thickness | Profiles thickness : 0.8 to 5.0mm |
Fabrication Process | Chamfering, Punching, Counterboring, Cutting (Sawing), Deburring, Slotting, Drilling (CNC), Machining, Stamping (High Speed), Tapping, Precise Cutting, Milling (CNC) |
Application | For Heat sinks For car amplifier enclosure |
Material Introduction
Aluminium Alloy Chemical Composition | ||
Alloy | 6063 (%) | 6061 (%) |
Si | 0.2-0.60 | 0.4-0.8 |
Fe | 0.35 | 0.70 |
Cu | 0.10 | 0.150-.40 |
Mn | 0.10 | 0.15 |
Mg | 0.45-0.90 | 0.80-1.20 |
Cr | 0.10 | 0.04-0.35 |
Zn | 0.10 | 0.25 |
Ti | 0.10 | 0.15 |
Al | Remainder | Remainder |
Tensile strength | σ b (Mpa): ≥ 250 | σb (MPa)：≥180 |
Elongation stress | σ p0.2 (Mpa): ≥ 110 | σ p0.2 (Mpa): ≥ 110 |
Elongation | δ 5 (%): ≥ 7 | δ5 (%)：≥14 |
Aluminum 6063-T5, k = 201 W/mK (most common)
Aluminum 6061-T5, k =167 W/mK
Parameters
Item No. | Section | Material | Height (mm) | Width (mm) | Thinckness (mm) | Area (mm²) | Weight (kg/m) |
H06001 |  | 6063-T5 | 24±0.2 | 60±0.2 | 1.9 | 416.4 | 1.12 |
H06002 |
| 6063-T5 | 23.3±0.2 | 117 | 3.8±0.2 | 625.61 | 1.71 |
H06003 |  | 6063-T5 | 23.3±0.2 | 94±0.2 | 3.8±0.2 | 626.45 | 1.71 |
W77001 |
| 6063-T5 | 45 | 95 | 4.5 | 1267 | 3.45 |

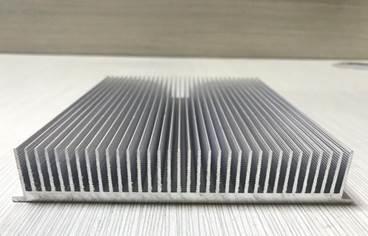

Product Display

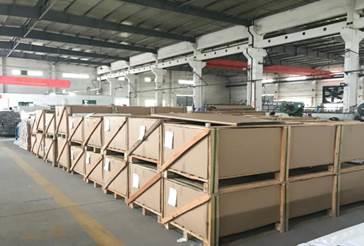

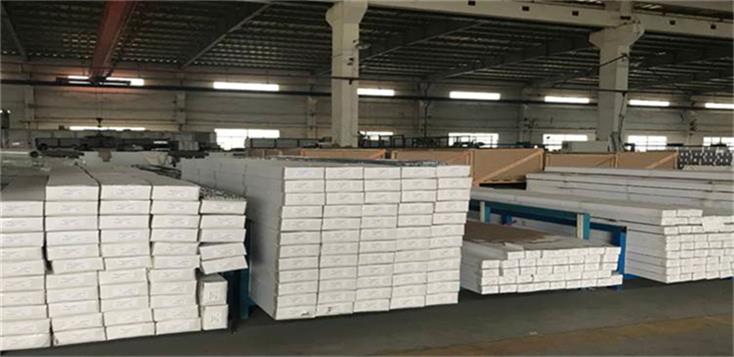

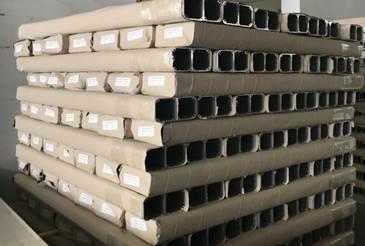

Packing and Shipping
Benefits
Turnkey extrusions and fabrication
From CAD and prototyping to assembly and delivery, our extrusion and fabrication services are accompanied by our extensive range of design, engineering, machining and sourcing solutions, giving you everything you need under one roof.
Bespoke solutions
There's no one-size-fits-all approach at YIDA company We know that every business is different, and we listen to what you need and tailor our approach to suit you. Working closely with our global network of trusted partners, we have the flexibility to find you the perfect solution.
